Home :: Hobby LEDs :: Chip Nano Pico LEDs

Really Small LEDs for small spaces

Click to enlarge
Click to enlarge
Order Information
AvailabilityUsually ships in 2-3 business days
Item # smd-chip-leds
Price$2.25
Size select size
 chip
 nano
 pico(+.10)
color select color
 warm white
 cool white
 red
 orange
 yellow
 green
 blue
Voltage Select Voltage
 3 volt DC
 5-12 volt DC
 7-19 volt AC/DC/DCC(+1.00)
wire length 8 inches
Qty

Buy more and SAVE!
Battery Option
Singles 2.25ea
5+2.00ea
10+ 1.90ea
Prices will update in cart
AC/DC/DCC option
Singles 3.25ea
5+3.00ea
10+ 2.90ea

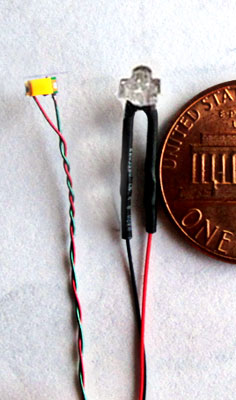

These super small LEDs are known as surface mount LEDs, SMD LEDs, or Chip LEDs.

They are very small and compact yet still very very bright! The benefit of a flat and compact LED Chip,
already wired for you, is that it still gives a great amount of light, but can be mounted flush, with no bulb shape showing.

We have taken these SMD Chip LEDs and taking care with tolerances, added 8 inches of red and green superfine magnet wire.

Get these chips already wired, tested, guaranteed, and fully ready to connect to your power supply. No resistors need to be added, we have done that part!
Dimensions


Choose your power supply, we have LEDs set up with correct resistors for
  • 3 volt DC
  • 9-12 volt DC
  • 7-19 volt AC/DC/DCC
"What do I need to run these?"
    3 volt use

  9 volt battery / regulated adapter

Your own AC/DC or DCC supply:
7-19V

Our
 3 volt coin holder with switch
3 volt AAA holder with switch
3 volt AA holder with switch
or our 3 Volt Adapter
9 volt get our
9 volt battery snap/switch
or plug in 12 volt get our
12 volt regulated adapter
7-19 volt Universal AC/DC/DCC lights
are already set up "plug and play"
for your own power supply


How many can run at once?
Using a  3 volt coin holder you can run 1-10 chips.
Using a 3 volt AAA holder you can run 1-30 chips
Using a 9 volt battery snap/switch you can run 1-50 of the chips.
Using a 12 volt 1 Amp supply is also 50 chips, no need to turn off.
Using your own power?
The chips draw 20 milliamps each. So check your power supply to see how many milliamps it lists. A 1000 milliamp supply can run 50 chips.

can the chip LEDs be run along with other LEDs from the same battery or coin cell?
Yes the chips can be run right alongside all of the other sizes of LEDs on the same power supply.

On the AC chips, what size is the rectifier/resistor unit?

This diagram shows the size of the rectifier unit

I need the AC type chips but I have to run them through a tight passage?
We have a solution! See our separated LEDs here: Separated


   cool white Nano chip in a lamp!
